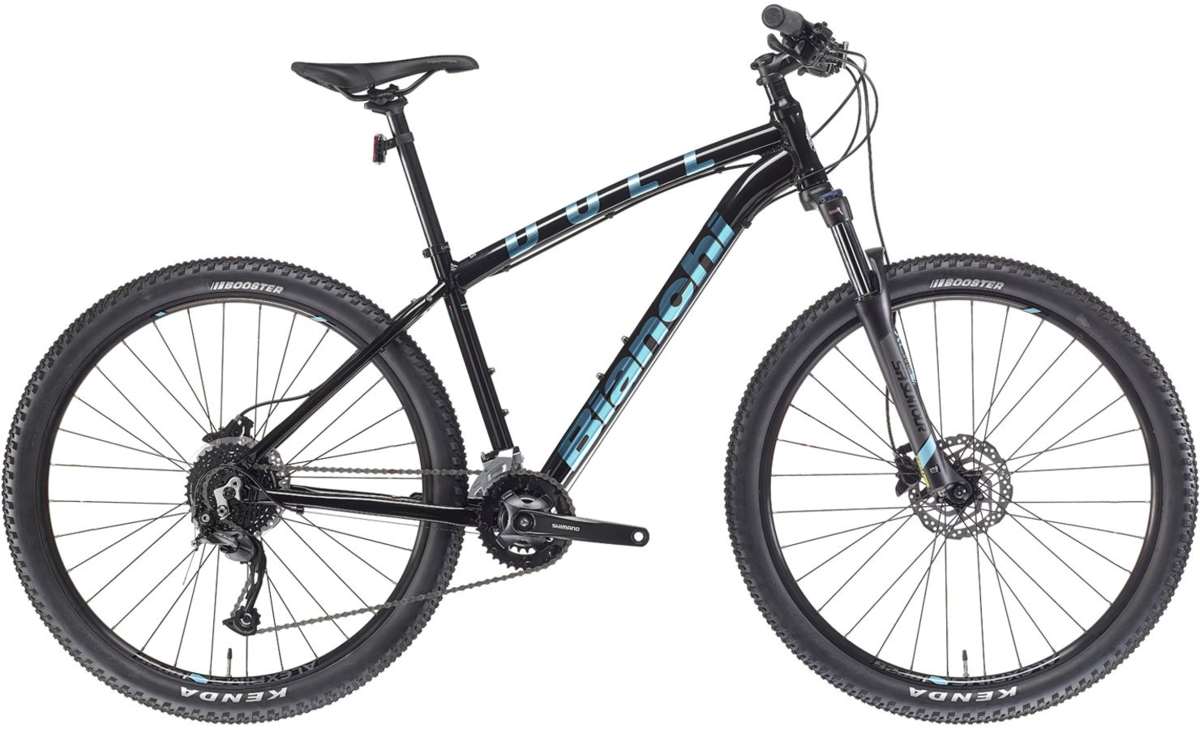

Bianchi Duel 29.S
$1,000.00
Details
Bianchi Cross Country mountain bikes are at home on all trail surfaces and combine control and comfort for a smooth and responsive ride on rough terrain.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A (mm) | 340 | 380 | 430 | 480 | 530 |
| B1 (mm) | 535 | 565 | 590 | 610 | 630 |
| BS (mm) | 539 | 560 | 574 | 588 | 605 |
| C (mm) | 440 | 460 | 460 | 460 | 460 |
| D (mm) | 50 | 60 | 60 | 60 | 60 |
| E (mm) | 110 | 100 | 110 | 120 | 130 |
| G | 73.5° | 74° | 73.5° | 73.5° | 73.5° |
| G1 | 70° | 70° | 71° | 71° | 71° |
| Y | 591 | 601 | 615 | 625 | 634 |
| X | 360 | 393 | 408 | 425 | 442 |
Specs
| Frame | Duel 27,5" alu, 1.1/8" HT, BSA 68mm, seatpost diam. 27,2mm, seat tube diam. 31,8mm, FD top pull, INTL 160mm disc mounting dropouts 9x135mm QR, ST w/V-Brake studs, external cable routing under TT, sizes 15-17-19-21" |
|---|---|
| Fork | SR Suntour XCM HLO DS 27,5" 100mm |
| Rims | Velomann DP2.5, 584x25c, 32h, Presta valve hole |
| Tires | Kenda Booster 27,5x2.2 |
| Bottom Bracket | Shimano BB-UN101 |
| Crankset | Shimano FC-MT101-2, 36/22T |
| Shifters | Shimano Alivio SL-M3100 2x9sp |
| Front Derailleur | Shimano FD-M2020-TS |
| Rear Derailleur | Shimano Alivio RDM3100 SGS 9sp |
| Cassette/Freewheel | Shimano HG200-9, 11-13-15-17-20-23-26-30-36T |
| Chain | Kmc HV900 9sp |
| Brakes | Shimano MT200KIT assembled set BRM200KIT(L&R) w/rear adapter adapter for IS 160mm, resin pad |
| Rotors | Shimano SM-RT10, 160mm front & rear, Center Lock |
| Handlebars | Velomann rise MTB479A, width 720mm, diam.31,8mm, rise 15mm, backsweep 9°, PG Alloy 6061 sandblasted anodized |
| Tape/Grips | T-one T-GP48B |
| Stem | Velomann ST92A +/-7°, 1.1/8" |
| Headset | Fsa TH888 |
| Seatpost | Velomann SP-7019, diam.27,2mm, 0mm seatback |
| Saddle | Velomann, steel rails, PVC soft touch cover, 140mm width |
| Pedals | Included |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| CK16/Titanium / 38cm | 08032809817796 | YRBC8J38DA |
| CK16/Titanium / 43cm | 08032809817819 | YRBC8J43DA |
| CK16/Titanium / 48cm | 08032809817833 | YRBC8J48DA |
| CK16/Titanium / 53cm | 08032809817857 | YRBC8J53DA |
