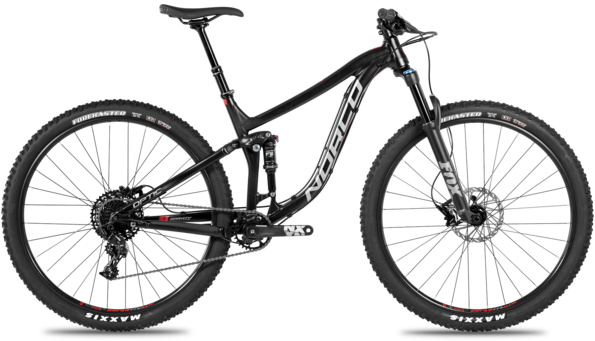

Norco Optic A2

Norco Optic A2
  • Color: Black/Red
  • Color: Black/Red
  • Color: Black/Red
This item is currently not available.


Norco's Optic is all about seeing trails in a new light, so take that harder line, hit that hip, and enjoy an enhanced perspective of your favorite old trails. The Optic A2 floats over rocks and roots with travel driven by a Fox Rhythm fork and a Fox DPS shock. Tubeless-ready wheels equipped with grippy Maxxis tires take on every berm, bump, and braided patch of roots without hesitation. The 1 x 11-speed SRAM NX drivetrain is fast, light, and incredibly reliable. Before you drop in to the next chunky descent, go ahead and lower the JD Trans X dropper post so you stay low and controlled. And if the gnar starts to get the best of you, rely on SRAM's hydraulic brakes to provide positive, modulated stopping power no matter the trail. The Optic A2 is polished off with Norco cockpit components, lock-on grips, and a WTB saddle, sure-fire accessories that'll keep you pinning it all day long.


Frame Optic Aluminum
29-inch: 110mm
27.5-inch: 120mm
Fork Fox 34 Rhythm Float w/grip damper, EVOL spring
29-inch: 120mm
27.5-inch: 130mm
Headset FSA #57B tapered internal
Rear Shock Fox Float, DPS, SV, EVOL
Axles Front: 15x110mm
Rear: 12x148mm
Rims/Wheels WTB STP I25, TCS 25mm inner
Hubs Front: Novatec sealed bearing disc
Rear: SRAM MTH 746 sealed w/XD driver
Spokes Stainless Steel
Tires Maxxis Forecaster folding bead EXO/TR
X-Small–Small: 27.5 x 2.35
Small–X-Large: 29 x 2.35
Crankset SRAM NX X Sync
Chainrings 27.5-inch: 32t
29-inch: 30t
Bottom Bracket SRAM Power Spline BB w/73mm thread in cup
Chain SRAM 11 speed
Rear Derailleur SRAM NX 11
Cassette/Rear Cogs SRAM NX 11 11-42T
Shifters SRAM NX 11 11 speed
Handlebars Norco 25mm rise 6061 DB alloy 760mm
Tape/Grips Norco lock on
Stem Alloy MTB stem
27.5-inch 60mm
29-inch: 50mm
Brake Levers SRAM Level T
Brakes SRAM Level T
Front: 180mm rotor
Rear: 160mm rotor
Saddle WTB Volt
Seat Post JD Trans X post 80mm XS, 100mm S, 125mm M, 150mm L/XL, 31.6mm
Accessories & Extras Norco Alloy Nutted Clamp

* Subject to change without notice.


Norco Optic - See the trail differently

Part Numbers

Option UPC MPN
Black/Red / X-Small / 27.5-inch 058817223440 654030110115
Black/Red / Small / 27.5-inch 058817223457 654040110115
Black/Red / Small / 29-inch 058817223464 654040110112
Black/Red / Medium / 29-inch 058817223471 654050110112
Black/Red / Large / 29-inch 058817223488 654060110112
Black/Red / X-Large / 29-inch 058817223495 654070110112
