Details

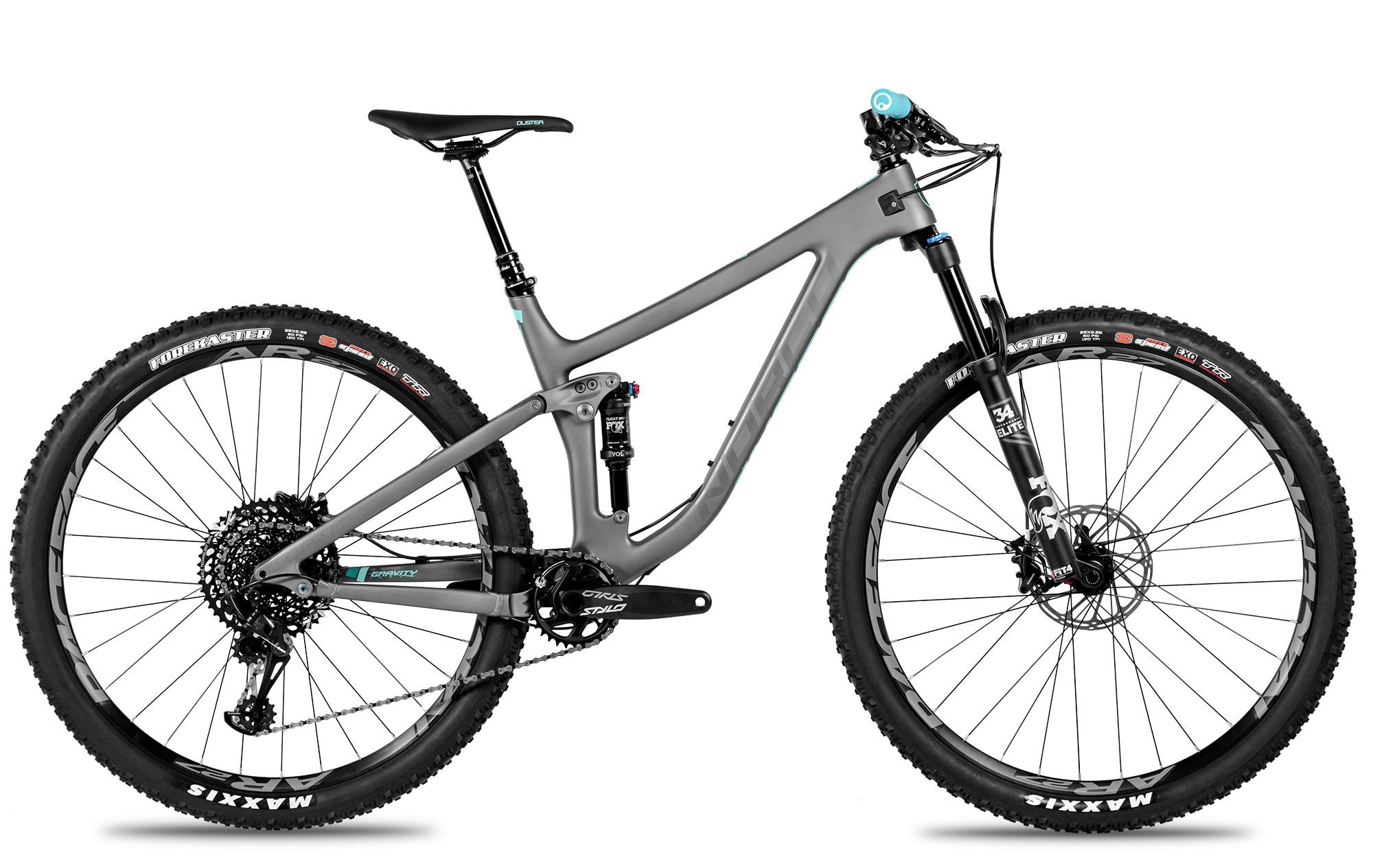

Norco's Optic C2: an eye-opening perspective on trail bike capability. Buff singletrack? A forest of off-camber roots? Punchy climbs and chunky descents? Yes, yes, and yes; all things are possible with dialed A.R.T. suspension powered by a Fox Performance Elite Float DPS shock and a Fox Performance Elite 34 Float fork. Roll loud and proud on fast-moving, tubeless-ready, Race Face rims dressed in tacky Maxxis tires, a combo that won't disappoint. The SRAM GX1 1 x 12-speed drivetrain offers a wide gear range and impressive reliability and simplicity. Let's not forget the rest of the bike: an SDG Duster saddle, Ergon lock-on grips, and Race Face handlebar and stem keep those contact points happy; powerful SRAM Level TL disc brakes are there when you need to reign in the fun; and a RockShox Reverb Stealth dropper post lets you rail your favorite rock garden.
Wheel size:
Sizes X-Small–Small: 27.5-inch
Sizes Small–X-Large: 29-inch
Pedals sold separately
Specs
Frame | Optic Carbon 110mm (29), 120mm (27.5) w/carbon seatstay |
---|---|
Fork | Fox Performance Elite 34 Float, boost, 120mm (29), 130mm (27.5) |
Headset | FSA No 42 ACB 1.5" to 1-1/8" |
Rear Shock | Fox Performance Elite Float DPS SV / EVOL |
Axles |
Front: 15 x 110mm Rear: 12 x 148mm |
Rims/Wheels | Race Face AR 27 w/27mm inner |
Hubs |
Front: DT 350 110x15 sealed bearing disc hub Rear: DT 350 148x12 Boost sealed w/XD driver |
Spokes | DT Competition stainless steel butted |
Tires | Maxxis Forecaster 2.35 3C/EXO/TR |
Crankset | SRAM/Truvativ Stylo 6K Eagle Boost crank |
Chainrings | w/32T (29), 34T (27.5) |
Bottom Bracket | SRAM GXP Pressfit BB 92 |
Chain | SRAM PC 12 speed chain |
Rear Derailleur | SRAM Eagle GX |
Cassette/Rear Cogs | SRAM Eagle GX 1275 10-50T |
Shifters | SRAM Eagle GX1 12 speed |
Handlebars | Race Face Turbine R 800mmx20mm rise |
Tape/Grips | Ergon GA 30 lock up |
Stem | Race Face Turbine Basic 50mm (29), 60mm (27.5) |
Brake Levers | SRAM Level TL |
Brakes | SRAM Level TL w/180mm rotor |
Saddle | SDG Duster |
Seat Post | RockShox Reverb Stealth w/new lever, 100mm SM, 125mm M, 150mm L/XL, 31.6mm |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Black/Grey/Teal / X-Small / 27.5-inch | 058817232534 | 651030117615 |
Black/Grey/Teal / Small / 27.5-inch | 058817232558 | 651040117615 |
Black/Grey/Teal / Small / 29-inch | 058817232596 | 651040117612 |
Black/Grey/Teal / Medium / 29-inch | 058817232657 | 651050117612 |
Black/Grey/Teal / Large / 29-inch | 058817232718 | 651060117612 |
Black/Grey/Teal / X-Large / 29-inch | 058817232770 | 651070117612 |
