Norco Revolver FS 2

Norco Revolver FS 2
  • Color: Red Fade/White/Black
  • Color: Red Fade/White/Black
  • Color: Red Fade/White/Black
  • Color: Red Fade/White/Black
  • Color: Red Fade/White/Black
  • Color: Red Fade/White/Black
This item is currently not available.

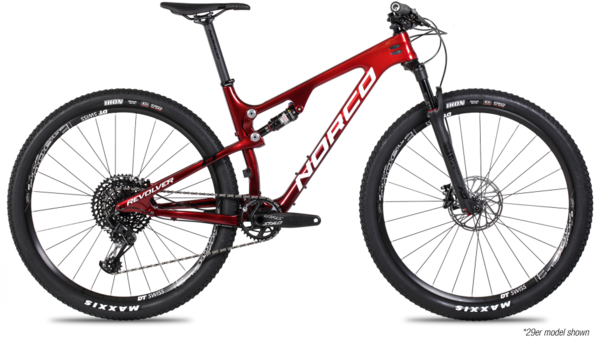

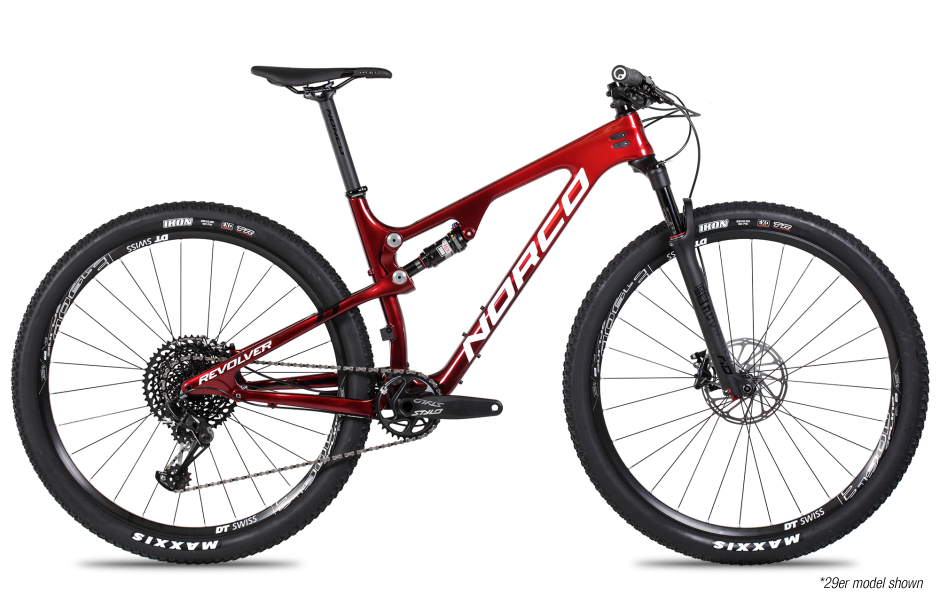

The Revolver FS 2 is a featherweight full-suspension cross-country carbon race weapon forged with Norco's gravity-fueled pedigree for downhill agility. Explosive acceleration is optimized with a suspension system designed specifically for the terrain encountered in XC racing, providing a stable platform for mashing hard out of the saddle. Combined with the athletic shock-absorbing characteristics of the RockShox SID RL fork and Monarch RL shock, the Revolver maintains traction over rough terrain with a magnetic feel. Forward motion is provided through a high-performing yet value conscious SRAM GX Eagle 12-speed drivetrain while SRAM maintains speed control with the satisfying stroke of Level TL brakes. The DT Swiss M1900 Spline wheelset spins fast and strong thanks to straight-pull spokes and lightweight aluminum construction. Cockpit components include a Norco DB Lite flat bar and alloy stem, Norco Lock On grips, and an SDG Duster RL saddle to complete a race-ready package that goes toe-to-toe with any big gun in town.


Frame Revolver FS Hi-Mod Carbon 100mm XC Race Frame
Fork Rock Shox Sid RL 100mm - 110mm/15mm
Headset Angular Sealed Cartridge Bearings - Tapered
Rear Shock RockShox Monarch RL
Axles Front: 15 x 110mm
Rear: 12 x 148mm
Rims/Wheels DT Swiss M1900 Spline Wheelset 25mm
Hubs DT Swiss M1900 Spline Wheelset 25mm
Spokes DT Swiss Champion Straight Pull
Tires Maxxis Ikon 29"x 2.2"/27.5" x 2.2" TR/EXO
Crankset Truvativ Stylo 6K Eagle DM
Chainrings 34T
Bottom Bracket SRAM PF MTB
Chain SRAM GX Eagle 12spd
Front Derailleur N/A
Rear Derailleur SRAM GX Eagle 12spd
Cassette/Rear Cogs SRAM XG 1275 12spd 10/50
Shifters SRAM GX Eagle 12spd
Handlebars Norco DB Lite 760mm 15mm Riser
Tape/Grips Ergon GA30 Lock On Grip
Stem Norco SL Alloy Stem
Brake Levers SRAM Level TL
Brakes SRAM Level TL 180mm
Saddle SDG Duster RL
Seat Post Norco SL Alloy Post 31.6
Accessories & Extras Norco Alloy 34.9 seat post clamp

* Subject to change without notice.

Part Numbers

Option UPC MPN
Red Fade/White/Black / X-Small / 27.5-inch 058817230493 661530110115
Red Fade/White/Black / Small / 29-inch 058817230523 661540110112
Red Fade/White/Black / Medium / 29-inch 058817230714 661550110112
Red Fade/White/Black / Large / 29-inch 058817230738 661560110112
Red Fade/White/Black / X-Large / 29-inch 058817230868 661570110112
